Khoom nta
- High zoo duab thiab sensors: Txias InSb FPA, Uncooled VOx thermal sensor;
- Lub teeb nyhav tsim
- 4MP CMOS pom sensor,
- Max. 5km Laser range finder (8km yeem)
- Rugged Design: IP66, IP67, muaj feem xyuam rau huab cua huab cua
- 2 Axis gyro stabilization tsim
- GPS / Beidou: ceev ceev taw tes rau thaj tsam ntawm lub hom phiaj, tau txais thaj chaw ua haujlwm
- Advanced AI txawj ntse: Kev soj ntsuam lub hom phiaj nruab hnub thiab hmo ntuj, kev soj ntsuam lub hom phiaj tseem ceeb, phau ntawv qhia thiab ua raws lub hom phiaj kev tshawb nrhiav thiab taug qab Tsis siv neeg lub hom phiaj paub thiab cim, ntau cov lej taug qab Daim duab, kaw video, compression thiab kis tau tus mob, thiab kev sib kis qeeb tsis tshaj 100ms
Technical Specification
| Yam khoom | Tus nqi / piav qhia | |||||

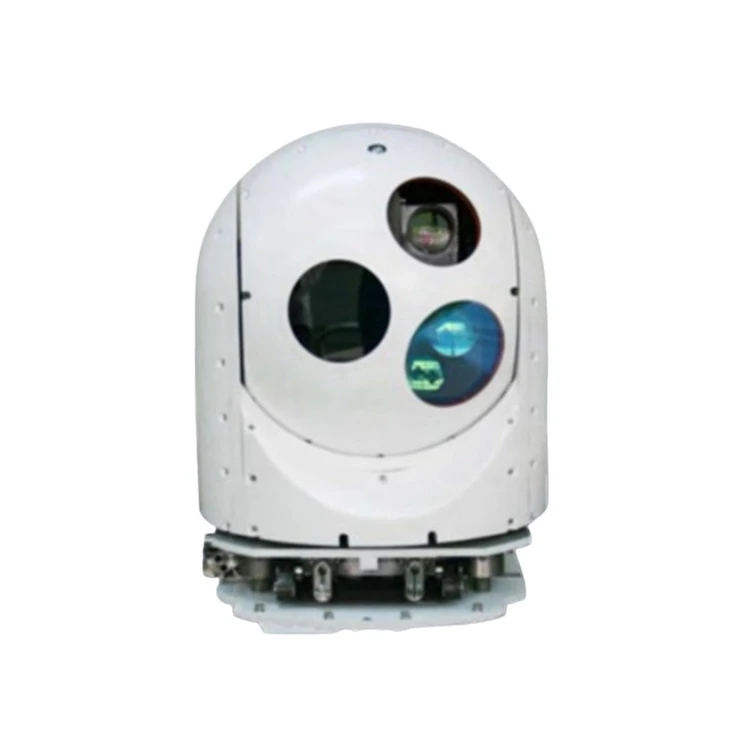

| Qauv | E200 2-Axis Gyro-Stabilized EO/IR Gimbal ISRT | |||||
| TSI camera | ||||||
| Cooled MWIR xaiv | Un-Cooled LWIR xaiv | |||||
| Sensor | 640x512/15µm Txias MWIR InSb (los yog MCT) | 640x512/12µm VoX | ||||
| NETD | <20mK | < 35mk @ 300K F1.0 | ||||
| Lens | 30mm ~ 150mm 5x optical zoom | 75mm kho | ||||
| FOV | NFOV: 3.6 degree × 2.9 degree, WFOV: 18.2 degree x 14.5 degree |
5.9 x 4.7 degree | ||||
| Spectrum | 3-5um | 8-12um | ||||
| Palette | 16 xim palettes | |||||
| Lub koob yees duab nruab hnub | ||||||
| Sensor | 4MP @ 2560x1440, 1/1.8 inch CMOS | |||||
| Lens | 13mm ~ 255mm 20x optical zoom, F2.8-F3.2 | |||||
| FOV | NFOV: 1.48 degree (H) × 0.83 degree (V) WFOV: 28 degree (H) × 16 degree (V), |
|||||
| Min teeb pom kev zoo | Xim: {{0}}.0005Lux@(F1.4,AGCON), Dub: 0.0001Lux@ (F1.4,AGCON) | |||||
| Ncej tus nqi | >25 Hz | |||||
| LRF (Laser Range Finder) | ||||||
| Lub wavelength | 1535nm ua | |||||
| Qhov tseeb | ±5m | |||||
| Max. Ntau yam | 4-5km (4x6m khoom) | |||||
| Ntau zaus | 1-5Hz | |||||
| Stabilization thiab System | ||||||
| Thermal Vision DR & Tracking Distance Performance Kev kuaj pom:Kev kuaj pom los ntawm Johnson txoj cai lij choj, avg. 4 pixels ib Kev lees paub:Kev lees paub los ntawm Johnson txoj cai lij choj, avg. 8px ua Auto-Recg. & Taug qab:Auto-Recognition thiab Tracking nrug, avg. 15 ntsug pixels Huab cua clearance> 25 km Qhov deb yog rau kev siv nkaus xwb thiab yuav tsum tsis txhob ua raws li hauv daim ntawv thov tiag tiag |
||||||
| MWIR @ NFOV | LWIR @ NFOV | |||||
| Kev kuaj pom | Kev lees paub | Auto-Recg. & Taug qab | Kev kuaj pom | Kev lees paub | Auto-Recg. & Taug qab | |
| Lub nkoj (9x2.5m) | >11km ua | ~ 6km | ~ 3km | >7km ua | ~ 4km | ~ 2km |
| Tsheb / nkoj me (3x1.5m) | >4km ua | ~ 2km | ~ 1km | >2.5km ua | ~ 1.3km | ~700m |
| HUMAN USDOD (1.8x{2}}.92m) | >3km ua | ~ 1.6km | ~850m | >2km ua | ~ 1km | ~500m |
| Azimuth | Qhov siab | |||||
| Ntau yam | ± 360 degree | -110 degree ~ +10 degree , lossis -180 degree ~ +20 degree | ||||
| Angular ceev | >100 degree / s | |||||
| Angular Acceleration ceev | 0-100 degree / sq | |||||
| Qhov tseeb qhov tseeb * | <0.5mrad | |||||
| Stabilization kev ua tau zoo ** | <0.2mrad(1σ)(1º/2Hz,2º / 1Hz) | |||||
| Stabilization hom | Qhov siab thiab Azimuth (2 axis) | |||||
| Scan hom | Phau ntawv, Sector scan, panoramic scan; | |||||
| Muaj nuj nqi | Boresight realtime txoj hauj lwm thiab txav angular ceev | |||||
| Video tso zis | IR channel mainstream: 1280 × 1024 @ 25Hz, Hnub ci channel: 1280 × 1024 @ 25Hz | |||||
| Interfaces | ||||||
| Hais kom ua thiab tswj | Kev cai tsim / RS485, RJ45, CAN, RS232/422, Ethernet, Joystick | |||||
| Video | Kev cai tsim / 16 ntsis lub koob yees duab txuas, 8 ntsis lub koob yees duab txuas | |||||
| Tshawb nrhiav thiab taug qab | ||||||
| Hom phiaj | Drone, Tib neeg, tsheb, nkoj, tsiaj | |||||
| Lub hom phiaj xam | Distance, azimuth, suab lub kaum sab xis | |||||
| Coordinate | GPS, Beidou | |||||
| Environmental, Mechanical thiab General | ||||||
| Ua haujlwm kub | -20degree-＋60degree | |||||
| Humidity | >95% (tsis muaj condense) | |||||
| Hwj chim | Nruab nrab<200W, Peak<350W | |||||
| Qhov hluav taws xob | DC 28 V | |||||
| Dimension | Φ200 hli x280mm | |||||
| Kev tiv thaiv | IP66 (Core ntu) + IP 67 | |||||
| Them nyiaj | <4kg | |||||
| Qhov hnyav | <9kg | |||||
|
|
||||||
* 100 urad customizable
** 40 urad customizable
